VENTICELL

Ovens with Forced Circulation
Product images are for illustrative purposes only and may differ from the actual product.

Due to a patented ventilation system the air within the VENTICELL® chamber is ventilated in a regular spiral way. This leads to a homogenous temperature profile throughout the chamber and short heating times. Operating economy is ensured by higher rate and precision of heating in laboratories. Especially suitable for very moist goods.

  • Volume: 22, 55, 111, 222, 404, 707, 1212 litres (pass-through version except for the 22 l and 1212 l volume)
  • Working temperature:  10°C above ambient temperature up to 250/300°C
  • Internal chamber: stainless steel DIN 1.4301 (AISI 304)
  • Clean premises version – on request
I am interested in VENTICELL

Product series description VENTICELL

Forced Circulation in the Chamber

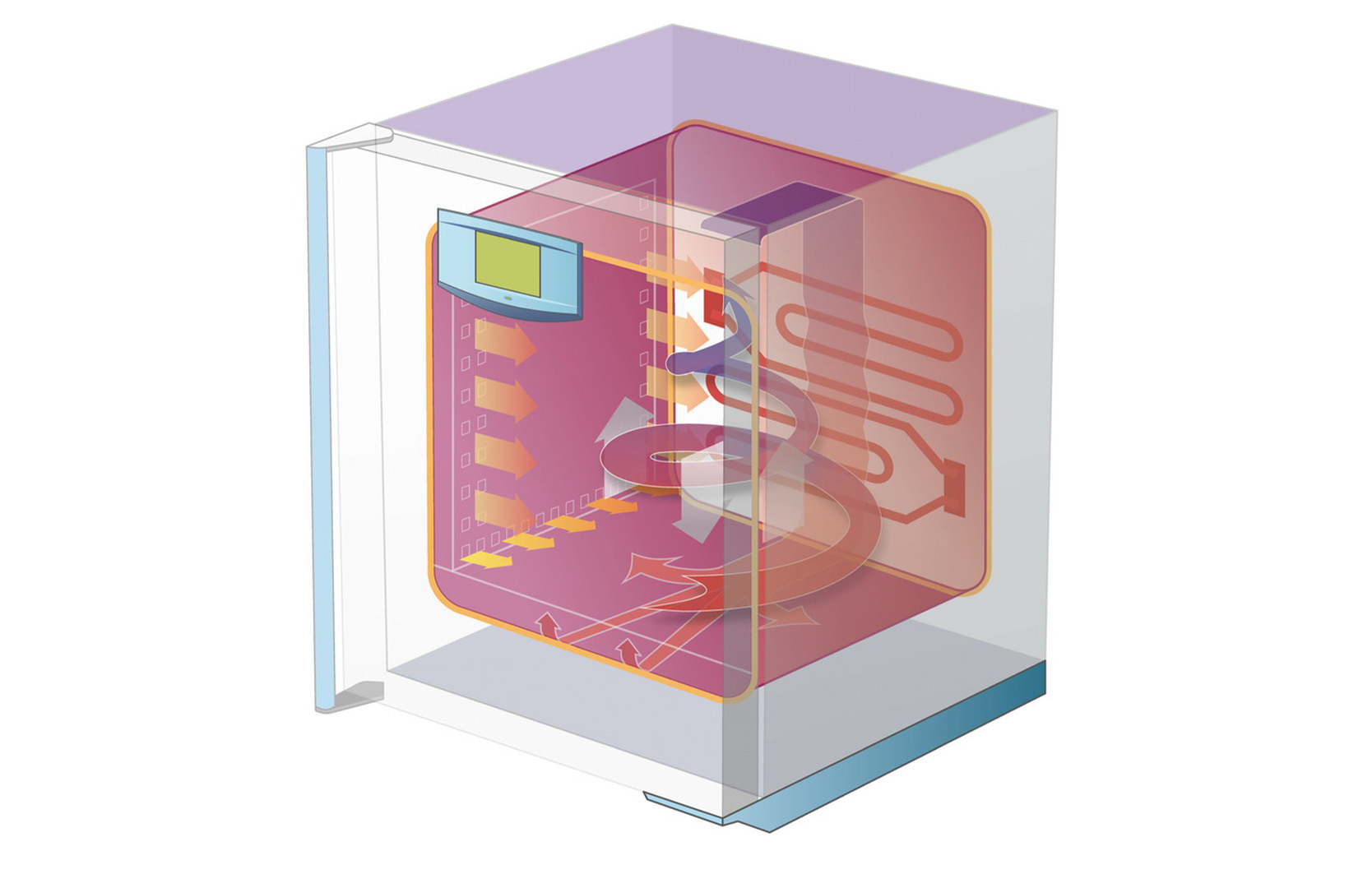

The principle of operation is based on fine patent-protected air flow using a ventilator in electrically heated chamber of the device. The used patent thermo-dynamic system arranges development of a homogenous air flow rising in a spiral inside of the operation chamber. By natural tempering from the bottom upstairs, the process simulates natural processes and it arranges optimal heating of materials and high space precision of temperature in the chamber with minimal power consumption.

Product Series Description

The drying oven series VENTICELL® with forced air ventilation for drying, heating and sterilization, with the chamber volume of 22, 55, 111, 222, 404, 707 and 1212 litres, working temperature from 10°C above ambient temperature up to 250/300 °C and precise temperature control is suitable for work with all common goods in laboratories and industry. The series VENTICELL® is characterized by quiet run and soft forced air ventilation within the chamber and is suitable for high-quality and safe drying, heating and sterilization of goods in laboratories. The patented air ventilation system ensures a rapid and precise reaching of the required temperature throughout the chamber and consequently the ideal process of sample heating. The series VENTICELL® offers high operation comfort, precise control and short temperature recovery times in the chamber after opening the door and therefore it is suitable for demanding and precise tests and processes. The devices VENTICELL® meet requirements of technical-legislative regulations in CZ and EU.

Basic Design Components

Sturdy design and perfect corrosion prevention are ensured by a self-supporting outer jacket made of galvanized steel sheet with hard and resistant baking varnish on the outer side. The inner double-jacket chamber and the door panel are made of high-quality stainless steel (DIN 1.4301, AISI 304). For the purpose of energy saving and minimizing the heat radiated to the ambient air the chamber is perfectly insulated with an ecological insulating material. The inner walls of the chamber can be easily removed without using any tool, e.g. for the purpose of cleaning. On top of that the chamber has a continuously adjustable air flap and can be provided with a door with window and an interior lighting on request. The door is secured at four points for perfect tightening.

Changes in the design and make reserved.

« »
